Beam engines

KS2 workshop. Design, Technology, History, Problem Solving, Team work.

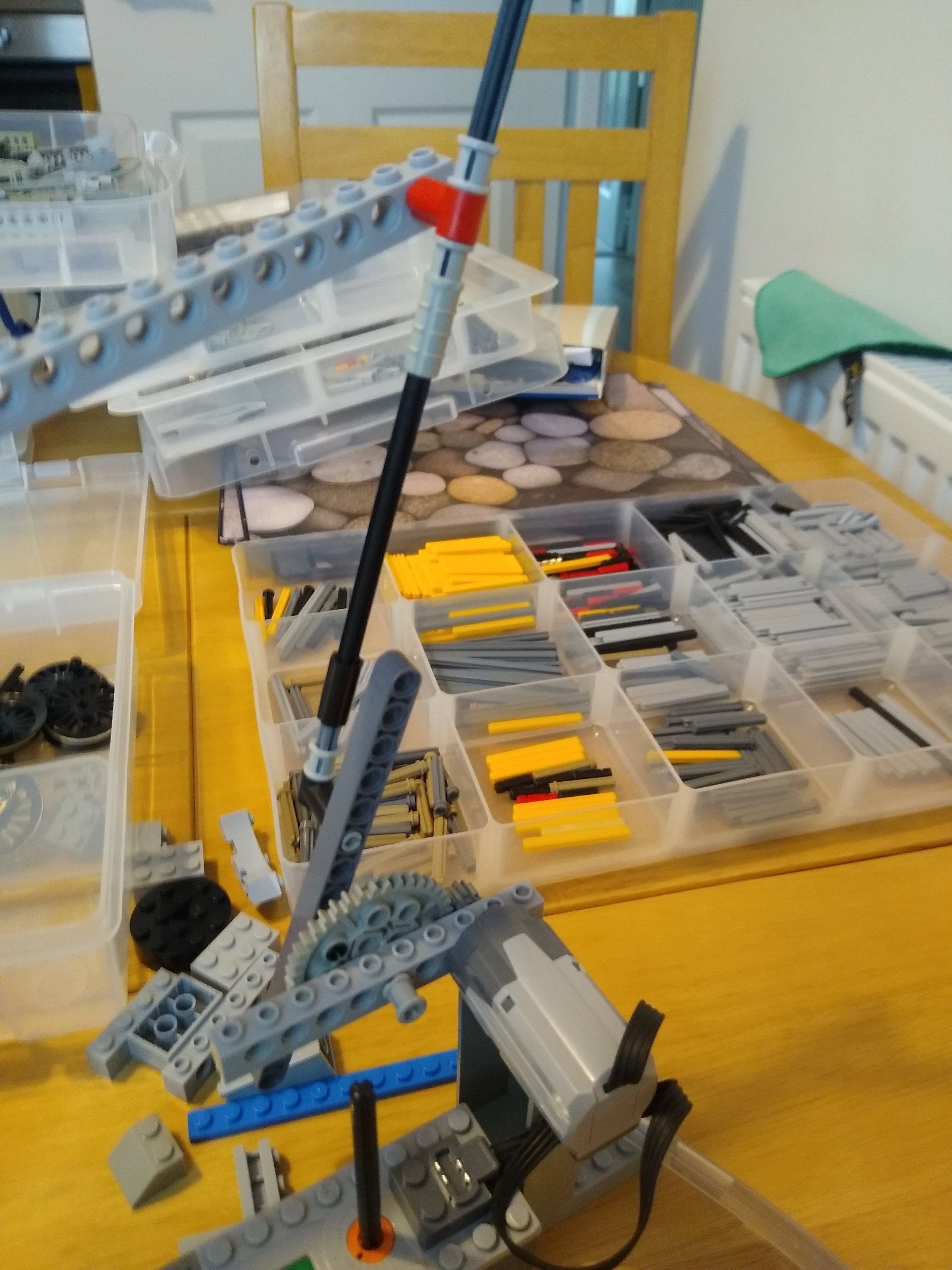

In this workshop the Children will work in small groups to problem solve and build a working beam engine (electric not steam) They will discover cams, levers, moving parts, cogs and gears. This workshop runs for a school morning.

The first steam-related beam engine was developed by Thomas Newcomen. This was not, strictly speaking, steam powered, as the steam introduced below the piston was condensed to create a partial vacuum thus allowing atmospheric pressure to push down the piston. It was therefore called an Atmospheric Engine. The Newcomen atmospheric engine was adopted by many mines in Cornwall and elsewhere, but it was relatively inefficient and consumed a large quantity of fuel. The engine was improved by John Smeaton but James Watt resolved the main inefficiencies of the Newcomen engine in his Watt steam engine by the addition of a separate condenser, thus allowing the cylinder to remain hot. Technically this was still an atmospheric engine until (under subsequent patents) he enclosed the upper part of the cylinder, introducing steam to also push the piston down. This made it a true steam engine and arguably confirms him as the inventor of the steam engine.
